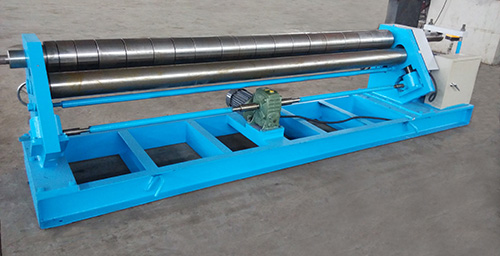

產品特點： 該機結構形式為非對稱式，上下輥均為主動輥，由電機驅動作正反轉，下輥由油缸驅動作上下運動，用于板料的夾持與松開。側輥由電機通過減速機同步軸驅動絲桿升降機帶動，在滑軌中作傾斜升降運動。卷板過程中，通過對側輥的升降調節，完成對板料曲率半徑的調整。該機設有液壓翻倒機構，極大地方便了成品工件的出料操作。
技術參數：
|
W11F-3-roller mechanical asymmetrical plate rolling machine |
|
Model |
Rolling
Thickness |
Rolling
Width |
Yield
Limit |
Min. Diameter
Full-Load |
Up Roller
Diameter |
Bottom Roller
Diameter |
Side Roller
Diameter |
Main
Motor |
|
(MM) |
(MM) |
Mpa |
(MM) |
(MM) |
(MM) |
(MM) |
(KW) |
|
W11F-2×1000 |
2 |
1000 |
245 |
250 |
120 |
120 |
120 |
2.2 |
|
W11F-2*1200 |
2 |
1200 |
245 |
250 |
120 |
120 |
120 |
2.2 |
|
W11F-2*1500 |
2 |
1500 |
245 |
250 |
130 |
130 |
130 |
2.2 |
|
W11F-2*2000 |
2 |
2000 |
245 |
250 |
130 |
130 |
130 |
2.2 |
|
W11F-4*1000 |
4 |
1000 |
245 |
300 |
140 |
140 |
140 |
3 |
|
W11F-4*1200 |
4 |
1200 |
245 |
300 |
140 |
140 |
140 |
3 |
|
W11F-4×2000 |
4 |
2000 |
245 |
350 |
150 |
150 |
150 |
3 |
|
W11F-6×1000 |
6 |
1000 |
245 |
350 |
140 |
140 |
140 |
3 |
|
W11F-6×1500 |
6 |
1500 |
245 |
400 |
150 |
150 |
150 |
4 |
|
W11F-6×2000 |
6 |
2000 |
245 |
400 |
160 |
160 |
160 |
4 |
|
由于產品不斷改進中，如出現此參數與實際數據不一致出，應遵照雙方的技術參數協議，恕不另行通知。
Because in the continuous improvement of products, if there is difference between this date and technical data, should comply with the technical agreement parameters on both sides. No further notice! |
