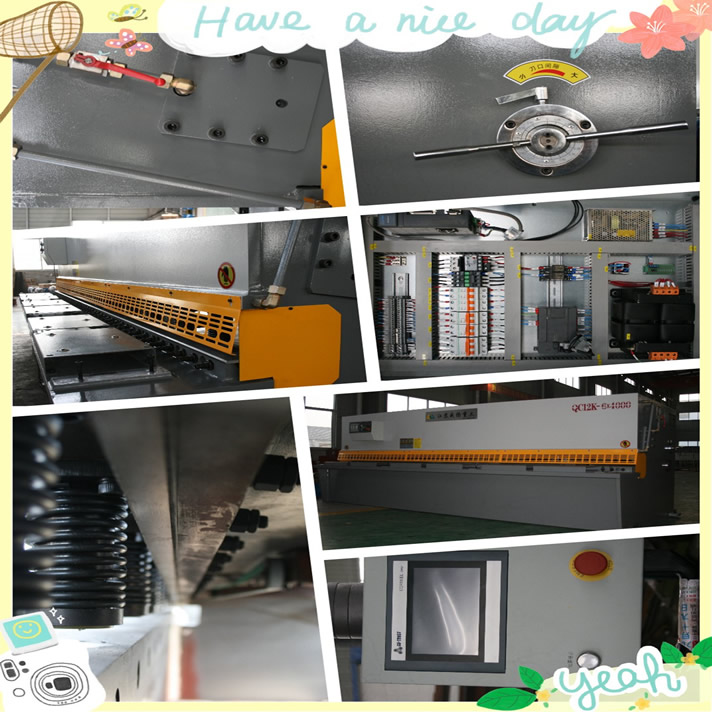

產品特點：
1、優質鋼材焊接，擺式刀架，強度高、剛性好；
2、焊后消除內應力,機身整體加工，保證了加工精度；
3、刃口間隙無極調整，輕便快速；
4、后擋料電動調整數字顯示；
5、具有剪切計數定數功能，使用方便；
6、具有燈光照明功能，便于劃線剪切；
7、定制的壓料腳，可以有效保護板料不被壓傷，離刀片較近，便于壓窄料。
技術參數：
|

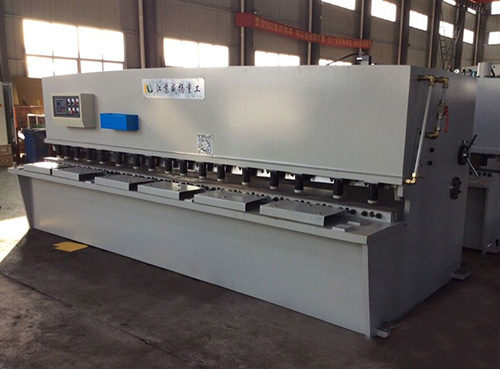

QC12Y Series Hydraulic swing beam shearing machine |
|
Specification |
Shearing
thickness
(mm) |
Shearing
width
（mm） |
Shearing
angler
（°） |
Number of
Stroke
（min-1） |
Backguage range
（mm） |
Motor
power（KW） |
|
QC12Y/K-4*2500 |
4 |
2500 |
1°30′ |
20 |
20-600 |
4 |
|
QC12Y/K -4*3200 |
4 |
3200 |
1°30′ |
18 |
20-600 |
5.5 |
|
QC12Y/K -4*4000 |
4 |
4000 |
1°30′ |
18 |
20-600 |
7.5 |
|
QC12Y/K -6*2500 |
6 |
2500 |
1°30′ |
18 |
20-600 |
7.5 |
|
QC12Y/K -6*3200 |
6 |
3200 |
1°30′ |
14 |
20-600 |
7.5 |
|
QC12Y/K -6*4000 |
6 |
4000 |
1°30′ |
14 |
20-600 |
7.5 |
|
QC12Y/K -6*5000 |
6 |
5000 |
1°30′ |
10 |
20-800 |
11 |
|
QC12Y/K -6*6000 |
6 |
6000 |
1°30′ |
10 |
20-800 |
11 |
|
QC12Y/K -8*2500 |
8 |
2500 |
1°30′ |
14 |
20-600 |
7.5 |
|
QC12Y/K -8*3200 |
8 |
3200 |
1°30′ |
10 |
20-600 |
7.5 |
|
QC12Y/K -8*4000 |
8 |
4000 |
1°30′ |
8 |
20-600 |
7.5 |
|
QC12Y/K -8*5000 |
8 |
5000 |
1°30′ |
7 |
20-800 |
11 |
|
QC12Y/K -8*6000 |
8 |
6000 |
1°30′ |
6 |
20-800 |
22 |
|
QC12Y/K -10*2500 |
10 |
2500 |
1°30′ |
14 |
20-800 |
11 |
|
QC12Y/K -10*3200 |
10 |
3200 |
1°30′ |
12 |
20-800 |
11 |
|
QC12Y/K -10*4000 |
10 |
4000 |
1°30′ |
12 |
20-800 |
11 |
|
QC12Y/K -10*6000 |
10 |
6000 |
2° |
10 |
20-800 |
15 |
|
QC12Y/K -12*2500 |
12 |
2500 |
1°30′ |
16 |
20-800 |
18.5 |
|
QC12Y/K -12*3200 |
12 |
3200 |
1°30′ |
14 |
20-800 |
18.5 |
|
QC12Y/K -12*4000 |
12 |
4000 |
1°30′ |
14 |
20-800 |
18.5 |
|
QC12Y/K -12*5000 |
12 |
5000 |
2° |
7 |
20-1000 |
30 |
|
QC12Y/K -12*6000 |
12 |
6000 |
2° |
6 |
20-1000 |
37 |
|
QC12Y/K -12*8000 |
12 |
8000 |
2°30′ |
5 |
20-1000 |
37 |
|
QC12Y/K -16*2500 |
16 |
2500 |
2° |
16 |
20-650 |
18.5 |
|
QC12Y/K -16*3200 |
16 |
3200 |
2° |
12 |
20-800 |
22 |
|
QC12Y/K -16*4000 |
16 |
4000 |
2° |
10 |
20-800 |
30 |
|
QC12Y/K -16*6000 |
16 |
6000 |
2° |
8 |
20-800 |
30 |
|
QC12Y/K -20*2500 |
20 |
2500 |
2°30′ |
5 |
20-1000 |
30 |
|
QC12Y/K -20*3200 |
20 |
3200 |
2°30′ |
4 |
20-1000 |
30 |
|
QC12Y/K -20*4000 |
20 |
4000 |
2°30′ |
3 |
20-1000 |
37 |
|
QC12Y/K -20*6000 |
20 |
6000 |
2°30′ |
3 |
20-1000 |
45 |
|
QC12Y/K -25*2500 |
25 |
2500 |
2°30′ |
6 |
20-1000 |
45 |
|
QC12Y/K -25*3200 |
25 |
3200 |
2°30′ |
5 |
20-1000 |
45 |
|
QC12Y/K -25*4000 |
25 |
4000 |
3° |
5 |
20-1000 |
45 |
|
QC12Y/K -32*2500 |
32 |
2500 |
3° |
5 |
20-1000 |
55 |
|
QC12Y/K -32*3200 |
32 |
3200 |
3° |
4 |
20-1000 |
55 |
|
QC12Y/K -40*2500 |
40 |
2500 |
4° |
5 |
20-1000 |
75 |
|
QC12Y/K -40*3200 |
40 |
3200 |
4° |
3 |
20-1000 |
90 |
|
QC12Y/K -50*3200 |
50 |
3200 |
3° |
5 |
20-1000 |
90*3 |
|
QC12Y/K -50*6000 |
50 |
6000 |
3° |
5 |
20-1000 |
90*5 |
|
QC12Y/K -60*3200 |
60 |
3200 |
3°30′ |
5 |
|
90*4 |
|
Because in the continuous improvement of products, if there is difference between this date and technical data, should comply with the technical agreement parameters on both sides. No further notice! |
